Sinkhorn Algorithm for Locally Aggregated Descriptors (SALAD)

In the context of VPR, we want to match a query image against references from an extensive database, relying solely on visual cues. State-of-the-art pipelines focus on the aggregation of features extracted from a deep backbone, in order to form a global descriptor for each image.

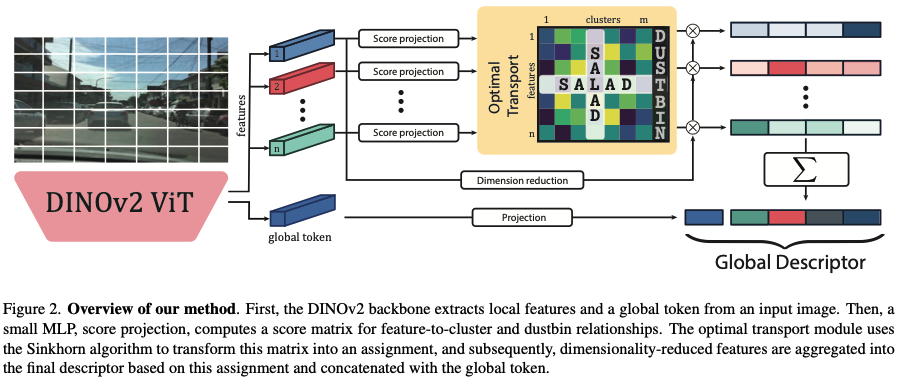

SALAD

It’s a feature aggregation module.

They consider both feature-to-cluster and cluster-to-feature relations and introduce a ‘dustbin’ cluster, designed to selectively discard features deemed non-informative.

For my application regarding VPR, it could act as a filter against partial correspondences and task-irrelevant background regions (sky).

Since DINOv2 and VGGT both use $14\text{px}$ patch size, the confidence maps would align 1:1. The distribution will differ massively, however, since VGGT’s features encode structural constraints and spatial relationships rather than semantic meaning (DINO). However, I expect the resulting confidence maps to highlight structural correspondences rather than semantic objects.

CLIP ViT-B/16 uses $16\text{px}$ patches, so I would have to interpolate.

What I want is the optimal transport side of it. I don’t care about the fine-tuned DINOv2 backbone.

Reduce assignment priors

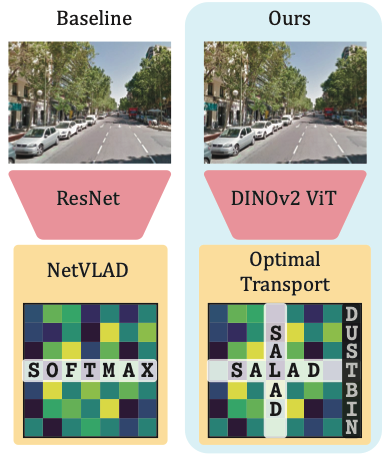

In NetVLAD, a global descriptor is formed by assigning a set of features to a set of clusters $\{C_1,\dots ,C_j,\dots C_m\}$. Then, NetVLAD computes a score matrix $S$ where each element is the cost of assigning a feature $i$ to a cluster $C_j$.

Priorly, $S$ was initialized with centroids derived from k-means. It accelerated training but it introduced bias and made the model more susceptible to local minima. SALAD learns each row $s_i$ from scratch with two fully connected layers initialized randomly:

$$s_i=W_{s_2}(\sigma (W_{s_1}(t_i)+b_{s_1}))+b_{s_2}$$

Discard uninformative features

Additionally they augment $S$ by adding a column ${\bar{s}}_{i,m+1}$ representing the feature-to-dustbin relation. This score is modeled with a single learnable parameter $z\in \mathbb{R}$:

$${\bar{s}}_{i,m+1}=z{1}_n,1_n=[1,\dots ,1{]}^{\top }$$

Optimal assignment

NetVLAD computes a per-row softmax over $S$ to obtain the distribution of each feature’s mass across the clusters. Since this approach overlooks the custer-to-feature relation, SALAD reformulates it as an optimal transport problem where the features’ mass, $\mu =1_n$, must be effectively distributed among the clusters or the dustbin, $k=[1_m^{\top },n-m{]}^{\top }$.

They use the Sinkhorn Algorithm to obtain the assignment $\bar{P}\in {\mathbb{R}}^{n\times (m+1)}$ such that:

$$\bar{\mathbf{P}}{1}_{m+1}=\mu \text{ and}{\bar{\mathbf{P}}}^{\top }{1}_n=k$$

Finally, they drop the dustbin column to obtain the assignment $\mathbf{P}$.

Dimensionality reduction

To manage the final descriptor size, they reduce the dimensionality of the tokens from ${\mathbb{R}}^d$ to ${\mathbb{R}}^l$. This is again achieved by processing the features through two fully connected layers which adjust the size of the feature vectors while retaining essential information from the task.

$${\mathbf{f}}_i=W_{f_2}(\sigma (W_{f_1}(t_i)+b_{f_1}))+b_{f_2}$$

Aggregation

Differently from NetVLAD, they do not subtract the centroids to get the residuals, but directly aggregate the features with a summation, reducing the incorporated priors about the aggregation. It results in the following VLAD vector as a matrix $\mathbf{V}\in {\mathbb{R}}^{m\times l}$. Each element is computed as follows:

$$V_{j,k}=\sum _{i=1}^n{P}_{i,k}\cdot f_{i,k}$$

Global token

To include global information about the scene (which is not easily incorporated into local features), they also incorporate a scene descriptor $g$ framed exactly as other two fully connected layers:

$$\mathbf{g}=W_{g_2}(\sigma (W_{g_1}(t_{n+1})+b_{g_1}))+b_{g_2}$$

• $t_{n+1}$ is the global token from DINOv2.

What do I use for VGGT for $t_{n+1}$?

In the end they concatenate $\mathbf{g}$ with $\mathbf{V}$ flattened, followed by an L2 intra-normalization and an entire L2 normalization of this vector $=>$ final global descriptor.
