Typologies of Image-Based 3D Vision

  • Visual Odometry
  • Visual SLAM
  • Structure from Motion (SfM)

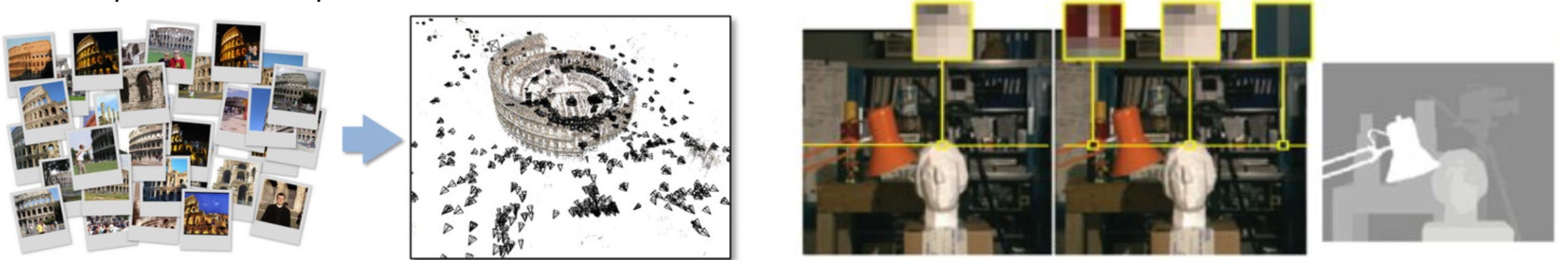

Structure from Motion vs Dense Matching

SfM

  • Sparse point cloud
  • SIFT
  • No constraints that can be used
  • Epipolar geometry unknown
  • Goal: estimate camera poses

Dense Matching

  • Identify many more corresponding points
  • If you have 2 images that overlap, you want the disparity for each pixel (Pixel Wise disparity estimation)
    • From the pixel-wise disparity, we get the depth map.
  • Parallax = Disparity
  • Epipolar geometry is known
  • Goal: estimate the shape of object surfaces in detail

You first need to do SfM and then Dense Matching.

Difficulties in finding corresponding points:

  • Images have different perspectives The wider the baseline, the harder it gets.
  • Repetitive patterns (brick wall) — how do you find the correspondent?
  • Surfaces without texture
  • Visibility (rain, fog, smoke)

Setups

One Camera - Forward Looking:

  • Poor intersection of rays, hence
    • Poor positioning in direction of the corridor
    • No depth estimation for the end of the corridor
      • The motion of the camera is in the same direction as the depth perception, so the baseline which is perpendicular to the depth direction is missing.
  • Nice solution: Panoramic Camera

Two Cameras:

  • Reasonable measurements in nearby part of corridor
  • Poor accuracy at end of corridor because of bad depth-to-base ratio. Recall

Three Cameras:

  • I would be able to get 3 pairs (3 different baselines)
  • I can project the points from the first two images into the third image.
  • Adds a lot of robustness — makes the data way more reliable.
    • Repetitive patterns
    • Random dot patterns

Camera + IMU:

  • VIO / VISLAM
    • You can rely on the IMU sometimes (for a short period)
    • Sensor alignment

LiDAR:

  • Have to understand which parts of the scene are stable (fixed) and which are in motion
  • For 3D pose estimation, point clouds need to contain three surfaces with independent normal vectors
    • Otherwise we risk sliding: Because the data hasn’t changed, the software “slides” along that axis, unable to tell if the robot moved 10 centimeters or 10 meters.

LiDAR + IMU:

  • IMU: how much you’ve moved in the past seconds
  • Can be used to eliminate mistakes
  • Add stability. IMU observations can prevent sliding

Camera + LiDAR:

  • They have complementary properties:
    • Camera has poor depth perception with a small baseline
      • LiDAR has high ranging accuracy
    • Camera depends on surface texture
      • LiDAR doesn’t require surface texture
    • Camera has high spatial resolution
      • LiDAR has large point spacing on distant surfaces
    • Camera has little scene structure needed
      • LiDAR depends on scene structure!
  • Don’t forget about sensor alignment
    • Rotation between axes should be calibrated
    • Offset between sensor origins should be calibrated
    • Strong stiff connection between lidar and camera body

Camera + LiDAR + IMU:

  • Further improvement of accuracy and robustness
  • Sensor Alignment again!
  • They are highly complementary. Whenever possible, combine them!
